Hydra Articulating Car Mounting System

Free shipping on US orders over $199 and on EU, Asia, Canada, and Mexico orders over $299 More Info →
(Offer excludes AK/HI. Some items are excluded due to weight)

$499.00$669.00

SKU: Hydra Articulating Car Mounting System Category:


Features

Ball Head with Manfrotto Quick Release System

Featuring a low-center-of-gravity ball head designed for 75mm bowls and a Manfrotto quick release system, it supports both Arca and Manfrotto plates. Compatible with most Tilta cages for mirrorless and lightweight cinema cameras, it also offers a 15° level adjustment range.

Manfrotto Quick Release Extender Plate

This plate features multiple mounting points, making it compatible with camera cages, L-brackets, and similar accessories. It prevents accidental disconnection, ensuring your device remains secure.

Manfrotto Quick Release Module

Mounted on the 75mm ball head, this module works with Manfrotto extended quick release plates and other Manfrotto-standard accessories, ensuring ease of use.

Triangular Support System

Featuring three 6” suction cups with heavy-duty articulating arms for a total weight capacity of 44 lbs. This system is ideal for using both inside and outside of a vehicle in a variety of environments.

Heavy Duty Articulating Arm

Made from high-strength aluminum alloy and stainless steel, each articulating arm has a maximum carrying capacity of 17.5 lbs and features a reversible locking knob for convenient use.

6'' Suction Cup with NATO Rail

With strong expansion capabilities, it easily supports articulating arms and other accessories.

Description

  • ARTICULATING ARMS Help Position the Camera in Unique Angles Both Inside and Outside of Vehicles
  • 75MM BOWL HEAD Supports 15° of Adjustments and Accommodates other 75mm Tripod Heads
  • MANFROTTO & ARCA Mounting Options Supports a Wide Range of Cameras and Camera Cages
  • HEAVY DUTY Car Mounting System Supports Payloads up to 44 lbs While Remaining Lightweight
  • ELECTRONIC OPTION Utilizes Battery Powered Suction Cups to Automatically Activate Suction in the Event of a Leak

Introducing the Hydra Articulating Car Mounting System

Featuring three 6” suction cups with heavy-duty articulating arms and a 44 lb weight capacity, this lightweight system is ideal for both interior and exterior car shots in various environments.

The central foundation of the system features a 75mm ball head with a low-center-of-gravity and up to 15° horizontal adjustment. Other 75mm Tripod Heads can also be used.

The included Head supports Arca and Manfrotto quick release plates, making it compatible with mirrorless and lightweight cinema cameras with or without cages.

The flexibility of the articulating arms means this system is perfect for unique angles, especially those that require a low profile.

Made from high-strength aluminum alloy and stainless steel, each articulating arm has a maximum carrying capacity of 17.5 lbs and features a reversible locking knob for convenient use.

The optional Electronic Suction Cup option features three battery powered suction cups that have the ability to monitor the real time pressure of these suction cups and automatically increase suction in the event of a leak.

HDA-T11:

1:Hydra Articulating Car Mounting System
2:1/4 Allen Key(32123.00023.00.00)*1
3:3mm Allen Key(32123.00025.00.00)*1
4:2.5mm Allen Key (32123.00052.00.00)*1

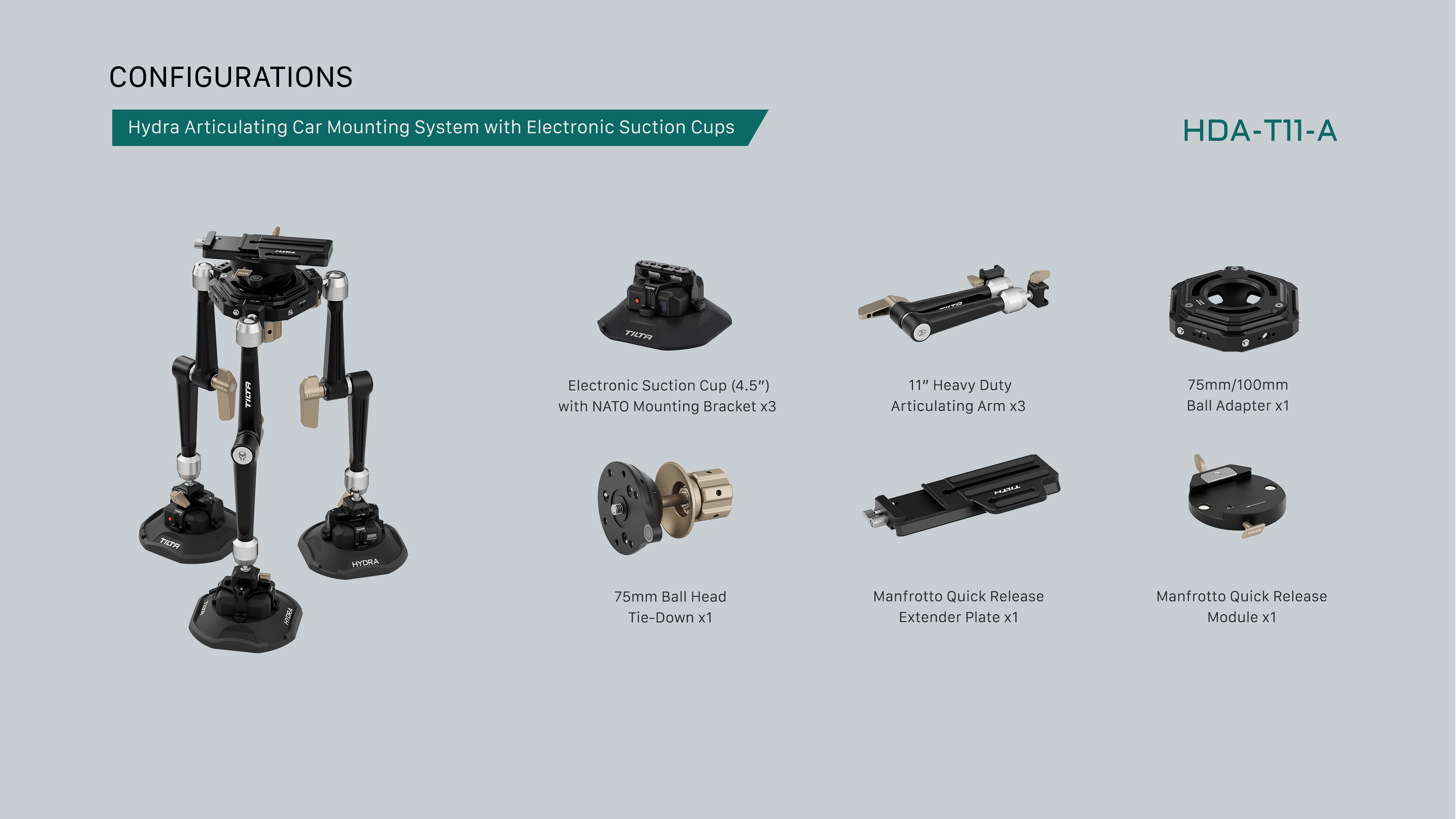

HDA-T11-A:

1:Hydra Articulating Car Mounting System with Electronic Suction Cups
2:1/4 Allen Key(32123.00023.00.00)*1
3:2.5mm Allen Key (32123.00052.00.00)*1
4:Soft Carrying Case for Hydra Articulating Car Mounting System with Electronic Suction Cups(35111.00020.00.00)*1

Dimensions: 20 x 6.5 x 17 inches

Weight: 14.4 lbs

Materials: Aluminum-alloy, stainless-steel, rubber

Color: Black

Customer Reviews
5.0 Based on 3 Reviews
5 ★
100%
3
4 ★
0%
0
3 ★
0%
0
2 ★
0%
0
1 ★
0%
0
Customer Photos
Write a Review Ask a Question

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
  • roads
  • suction cups
  • surfaces
  • something
  • materials
  • mount
VH
04 September 2024
Ville-Veikko H.
FI FI
I recommend this product

Super rigid and fast setup

Must say the Hydra articulating car mounting system exceeded my expectations. I've used several different systems over the years, and this is the strongest, most reliable ever. Works great on top of the car hood etc. with cameras such as FX6, Freefly Ember, and FX3. I also tried to use it as a side rig, so that camera would be hanging on the side of the car, but for that use the ball head was a tiny bit too heavy, causing vibrations – but as this uses standard NATO rails, I was able to attach rails and the suction arms straight to my camera cage. I think this is also more about the fact that new cars are made of aluminium foil instead of thicker materials. :) All the components are strong and stay in place really well.

  • Quality Needs WorkGoodExcellent
  • Price / Value ExpensiveOKGreat
  • What kind of content do you create? Automotive commercials.
  • What Camera System do you use this with? FreeflySonyOther
Tilta Hydra Articulating Car Mounting System Review
WL
11 August 2024
Wayne L.
DO DO
I recommend this product

THE GOAT

I love it. feels very high quality & I love how quick it is to assemble and attach to different parts of a vehicle in no time compared to other car mounting systems out there.

  • Quality Needs WorkGoodExcellent
  • Price / Value ExpensiveOKGreat
  • What kind of content do you create? Commercial
  • What Camera System do you use this with? ARRIBlackmagic DesignCanonRED
VS
03 August 2024
Vegard S.
NO NO
I recommend this product

Heavy rig on suction cups

Always sceptical about hanging something heavy and expensive frum suction cups and especially from uneven surfaces on a car driving on bumpy roads 😅 But this mount hang on there like it was an original part of the car. Materials are sturdy and it feels like a well thought out product.

  • Product Quality Needs WorkGoodExcellent
  • Price / Value ExpensiveOKGreat
  • What kind of content do you create? Commercials and documentaries
  • What Camera System do you use this with? DJISony
Tilta Hydra Articulating Car Mounting System Review
