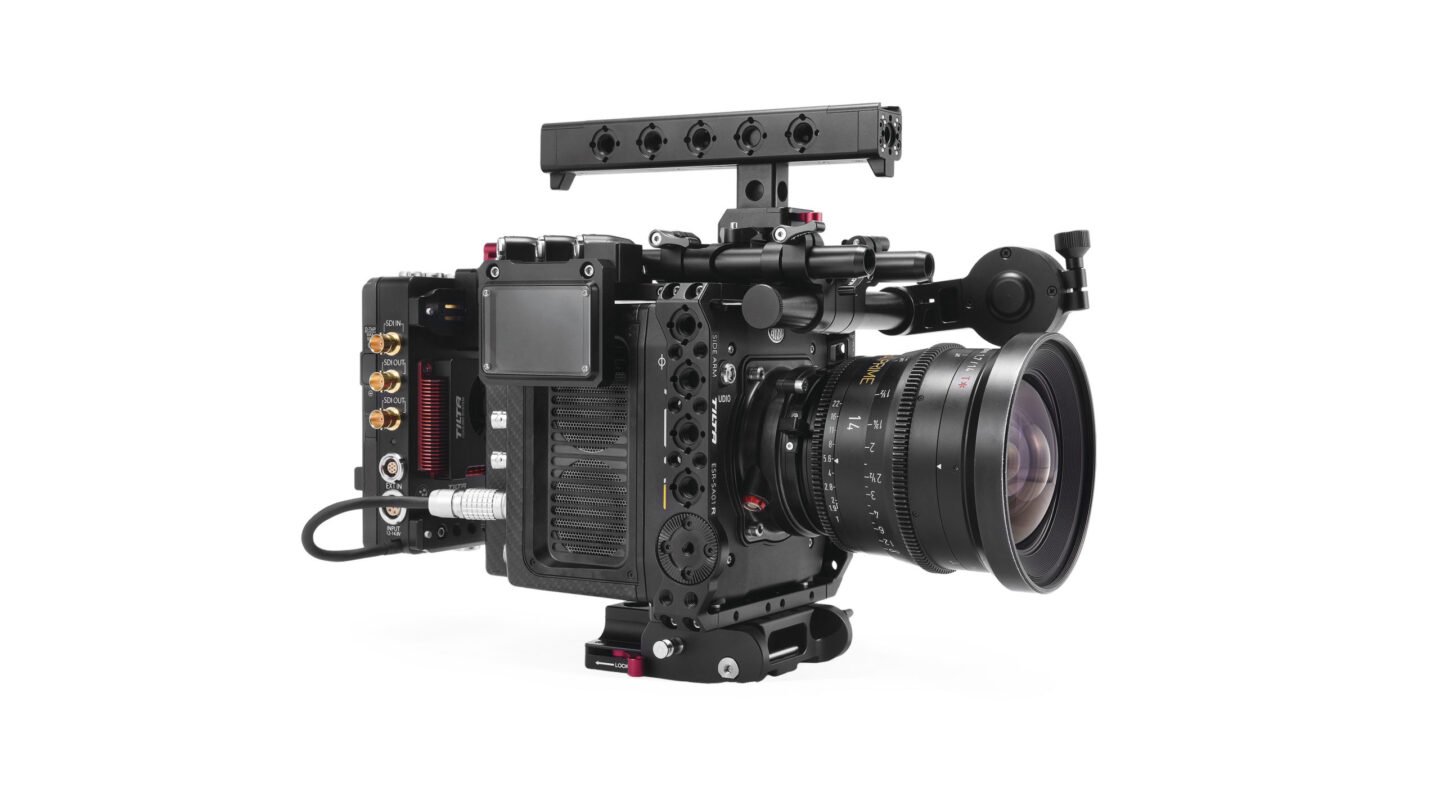

Camera Cage for Arri Alexa Mini (Discontinued)
Camera Cage for Arri Alexa Mini (Discontinued)

Camera Cage for Arri Alexa Mini (Discontinued)

Free US shipping on orders over $299 / $35 Flat Rate International (Offer excludes AK/HI. Some items are not included)
This product is final sale only.

$2,659.00

Clear
SKU: ESR-T06 Category: Tags: ,
UPC


Description

Arm your camera with this Tilta camera cage specifically designed for the Arri Alexa Mini. It provides a high quality aluminum, CNC-milled protective armor for your camera that has several ¼”-20 and ⅜”-16 mounting points for attaching accessories.

The Tilta Standard Battery Plate for Arri Alexa Mini Cage (available in either gold mount or V-mount) integrates with the camera body to provide several power and video in and outputs. Pins on the top NATO rail of the plate directly communicate with the top plate and top handle when attached which transfers power output functionality to them. The optional Top Plate Power Connection Module offers power distribution off the top plate while the the also optional Top Handle Power Connection Module offers power distribution off the top handle. These allows you to power your accessories from virtually anywhere on the cage.

The battery plate is attached to a sliding bridge mount so you can move it away from the back of the camera body to access the various buttons and ports and then slide it back right up to the camera body for a compact setup while operating.

An EVF holder can be mounted off the top plate which allows for 360 degree rotation so that you can customize how you want to view your Alexa Mini EVF while operating.

Left and right side arms help to fully stabilize the cage and provide protection as well as a variety of mounting points to all sides of the cage. These side arms also include Arri Standard Rosette connections to allow you to easily connect handles for a compact handheld operating setup.

On the bottom of the cage is a 15mm LWS baseplate that allows you to attach various accessories via 15mm rods. The plate can mount to a Tilta Standard Lightweight Dovetail Plate to allow you to easily slide on and off of an operating setup.

**An additional baseplate can be purchased to adapt the Tilta standard baseplate to an Arri standard baseplate to allow you to mount your camera rig onto an Arri standard-sized dovetail.

  1. (1) Top handle with power pass through
    • (1) Cold shoe mount
  2. (2) 15mm top rod adapters
  3. (1) 15mm LWS to 19mm rod adapter for LCD bracket
  4. (1) 19mm rod adapter for LCD bracket
  5. (1) EVF holder
  6. (1) Long top plate with power pass through
  7. (1) Short top plate
  8. (1) Short bottom plate
  9. (1) 15mm LWS baseplate
  10. (2) 15mm x 80mm rods
  11. (1) EXT to EXT cable
  12. (1) Top plate to battery bridge with power pass through
  13. (1) Right side arm
    • (1) Arri Standard Rosette connection
  14. (1) Left side arm
    • (1) Arri Standard Rosette connection
  15. (1) Battery plate 15mm LWS rod adapter
  16. (1) Arri Alexa Mini battery plate (available in V-mount or gold mount)

Color: Black

Materials: Aluminum-alloy, stainless steel

Rod System: 15mm LWS

Power/Port Breakdown:

V-Mount/Gold Mount Battery Plate (7 Amps max.)

    • (2) 14.8V 3-Pin Fischer outputs with RS (3 Amps max. each)
    • (2) 14.8V 2-Pin 0B Lemo outputs (3 Amps max. each)
    • (1) 14.8V P-tap output (3 Amps max.)
    • (1) 12-14.8V 6-Pin 2B Lemo Power input
    • (1) 7-Pin Lemo EXT input
    • (1) 7-Pin Lemo EXT output
    • (1) 8-Pin 2B Lemo Camera Power Cable
    • (1) HD-SDI input
    • (2) HD-SDI outputs

Top Handle Power Connection Module for Arri Alexa Mini Camera Cage (8 Amps max. total output between top handle power connection module and top plate power connection module)

    • (2) 14.8V 3-Pin Fischer outputs (2 Amps max. each)
    • (1) 14.8V 2-Pin 0B Lemo outputs (2 Amps max.)

Top Plate Power Connection Module (8 Amps max. total output between top handle power connection module and top plate power connection module)

    • (2) 14.8V 3-Pin Fischer outputs (2 Amps max. each)
    • (1) 14.8V 2-Pin 0B Lemo outputs (2 Amps max.)
