Top Plate for Red DSMC2 Camera Cage – B1

30 Day Return Policy Shop with confidence with our updated return policy

$550.00

SKU: ESR-T01-B-TP Category: Tag:

Description

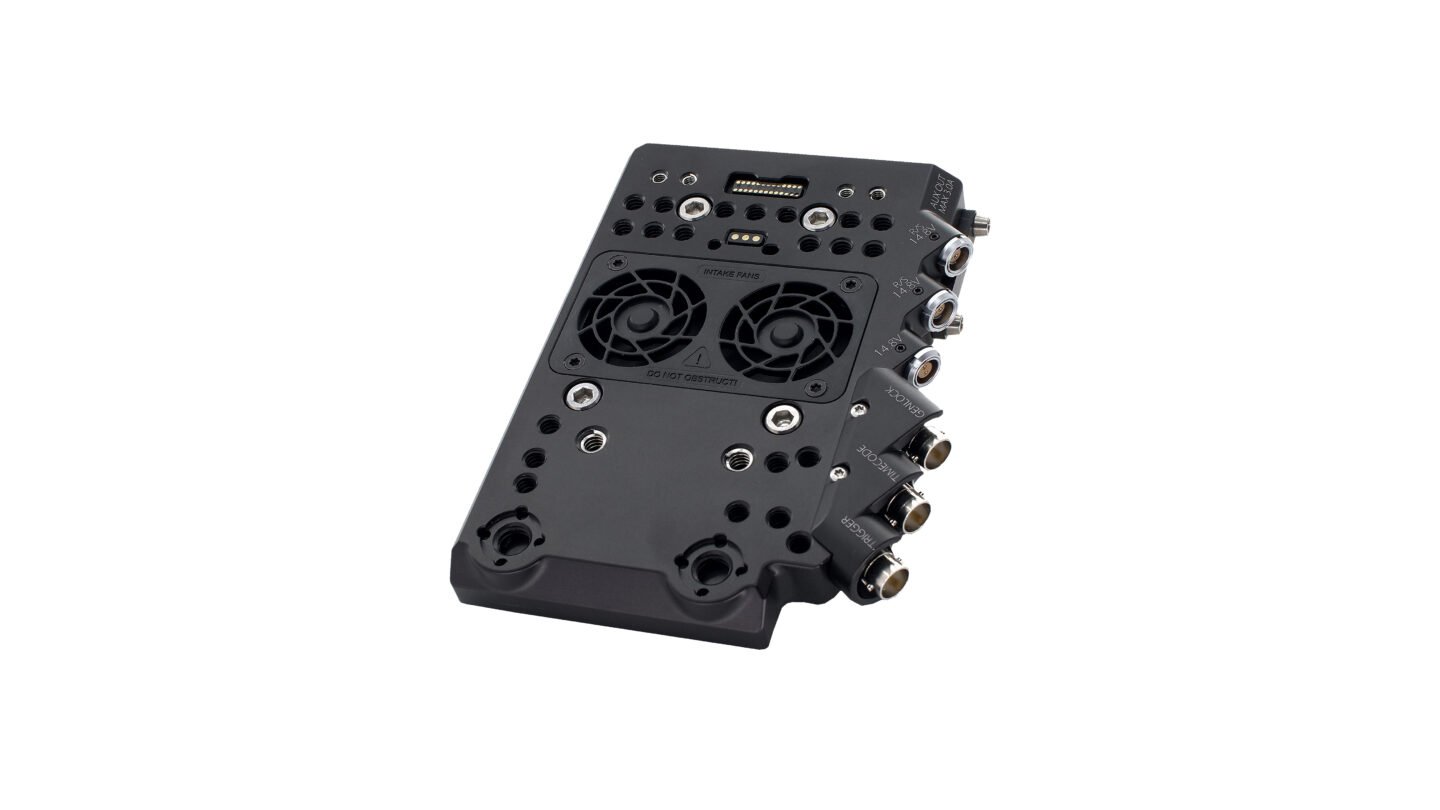

This top plate integrates with the Tilta Red DSMC2 Advanced I/O Module to provide more power, video, and audio in and outputs for your camera as well as more mounting points for your camera cage. The plate is only sold as a replacement piece for the Tilta Camera Cage for Red DSMC2 – B1 since it has exposed pins on the bottom that need to be covered by the module that is included in the cage for it to be safe and operational.

  1. (1) Tilta Top Plate for Red DSMC2 Camera Cage – B1
    • (2) 14.8V 3-pin Fischer outputs
    • (1) 14.8V 2-pin Lemo output
    • (1) Genlock port
    • (1) Timecode port
    • (1) Trigger port
    • (1) Front switch to turn on and off the run/stop feature of the top handle
    • (3) ⅜”-16 screw holes
    • (18) ¼”-20 screw holes
  2. (4) Connection screws

Color: Black
Materials: ABS plastic, aluminum-alloy, stainless steel
Power Output: 2-pin and 3-pin ports — 3 Amps max. each, 8 Amps max. total

Optional Accessories

  • Camera Cage for Red DSMC2 - B1

    Camera Cage for Red DSMC2 – B1

    $3,399.00
    Select options
  • Red DSMC2 Advanced I/O Module

    Red DSMC2 Advanced I/O Module

    $1,980.00
    Select options
