Tiltaing Cooling System - Black
Tiltaing Cooling System - Black
Tiltaing Cooling System - Black
Tiltaing Cooling System - Black
Tiltaing Cooling System - Black
Tiltaing Cooling System - Black
Tiltaing Cooling System - Black
Tiltaing Cooling System - Black

Tiltaing Cooling System – Black

$165.00

In stock

SKU: TA-CS-B Category:
UPC 810076272511


Tilta Camera Cooling System for Canon R5/R6
full range cooling efficient and stable

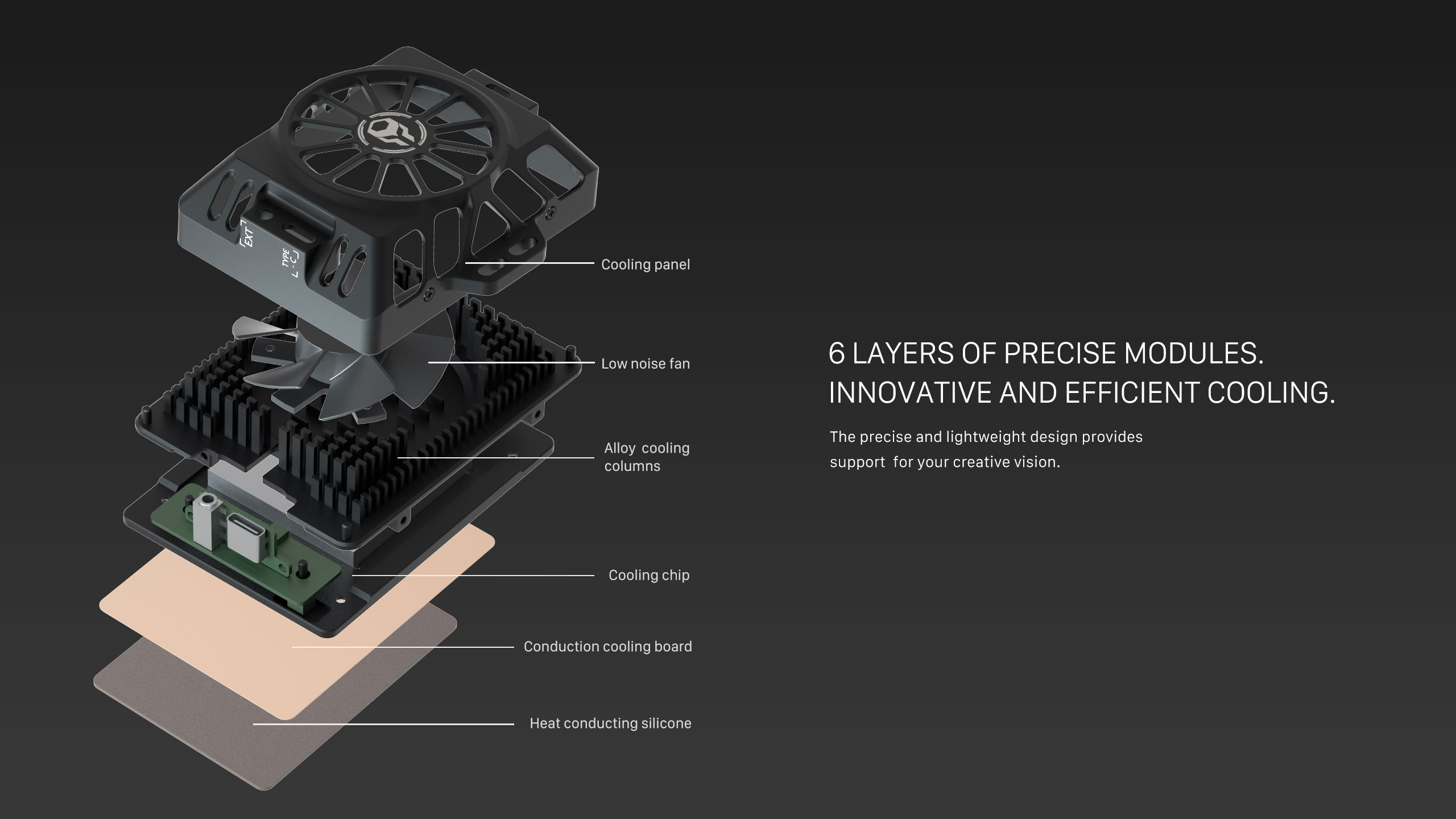

6 layers of precise modules
high speed fan low noise operation

Features

easy to open

Easy access to buttons

Durable and collapsible. Reserved space for the flip screen. Turn the cooling panel 90° downwards to the bottom of the screen.

compact and custom fitting

Compact

Custom engineered to fit the Canon R5 like a glove.

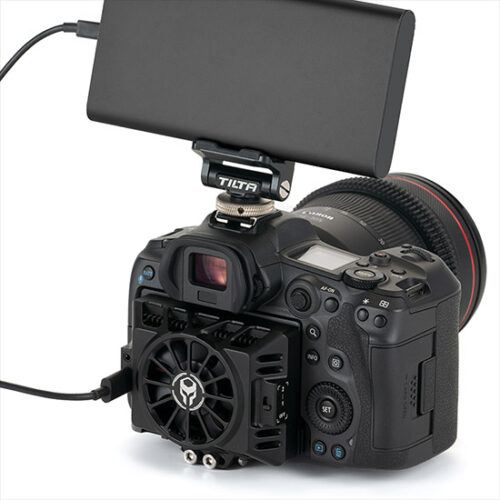

external power

External Power Supply

Power the cooling system via a universal USB-C port. mVoltage range: 5V-12V. Amp range: 3A-5A

EXT port

EXT Port

EXT Port: Use Nano cable RS-WLC-T04-USBC to connect your camera with cooling system.
Type-C port: Use TCB-USBC2 to connect side handle.

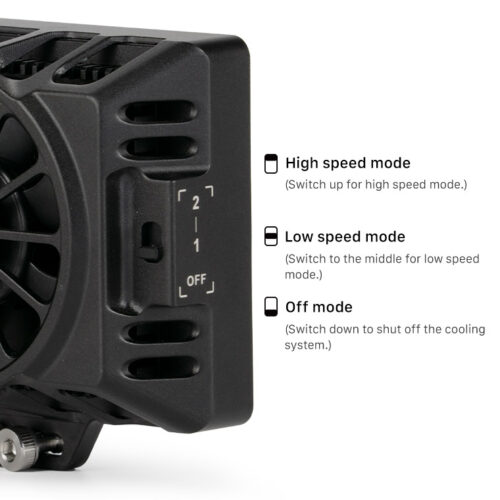

fan modes

Three modes of operation

Choose between high or low speed modes to efficiently cool off your camera’s electronics. Turn it off when you need quiet camera operation.

TA-CS-B Specs and packaging
installation

Easy Assembly with the Camera Cage & Camera

Securely install it to the base of the camera cage. The standard baseplate is compatible with the camera body.

Canon R5/R6 cooling fan BTS on set

Description

  • [ADVANCED COOLING] Lets You Shoot Longer and Avoid Overheating
  • [HIGH & LOW SPEED] Options Allow you to Adjust the Fan Speed for Different Situations
  • [CUSTOM DESIGNED] for Canon R5/R6 With or Without a Camera Cage
  • [USB-C POWER] Offers Universal Power Option for Running the System
  • [COMPACT & ACCESSIBLE] Allows Access to All Camera Functions

Arm your camera with the Tiltaing Cooling System designed specifically for the Canon R5/R6.

This Cooling System allows you to shoot longer with higher resolutions and faster frame rates without overheating restrictions limiting how long you can shoot.

The system seamlessly mounts to our Camera Cage for Canon R5/R6 and includes an additional mounting bracket, allowing you to use the system without a cage and remain as lightweight as possible. Pair it with the ARCA Baseplate for Cooling System to use it with existing equipment.

This bracket also features an articulating hinge, which lets you swivel the entire module away from the camera body, allowing you to flip the screen back into a closed position.

The system can be powered via any USB-C power source and features an EXT port for run stop cables.

The module features two different fan speeds allowing for quieter cooling during takes and stronger cooling when needed.

The highest fan speed reaches 5000 rpm and operates at a relatively quiet 30 db.

1:Tiltaing Cooling System – Black
2:Right Angle USB-C Cable (8V)(TCB-USBC2)*1
3:Hex Key(199-000000-031)*1
4:ARCA Baseplate for Cooling System – Black(TA-CS-ARCA-B)*1

Dimensions: 5 x 4 x 3 inches

Weight: 0.7 lbs

Net Weight: 0.42 lbs

Materials: Plastic

Color: Black

Customer Reviews

Based on 3 reviews
67%
(2)
0%
(0)
33%
(1)
0%
(0)
0%
(0)
T
Tan Nguyen (Fountain Valley, US)
Tilta Cooling system for Canon R6

Even though my R6 is not too hot to use the tilta cooling to cool it down. However, it fits well in the box of the live view and will be very useful when the back of the body is getting hot that I can feel it sometimes before. Tilta cooling system looks solid.

J
Joel Duvall (Rocklin, US)
Fan works exactly as described so far, fan noise ok, but a on camera mic indoors would pick it up

First in response Dimitri Boss who said overheating is based on a timer in a posted review here. You are misinformed and I would guess you don’t own an R5. Since a firmware update from last year the overheating is directly affected by temperature.

In the documentation provided with the fan there is a grid of expected results that shows in about 27C ambient temps your record times improve about 1.9x with a low fan setting and over 3x on hi. This is about what I am getting as well. I have not tested this outside in higher temps because I am recovering from Covid but I would expect those ratios to drop down a bit.

There is a mod from Kolari Vision that also puts a better heat dissipating heat sink in the camera, and it actually puts the heat to the back of the camera. The combination of these two would likely give you unlimited 8k Raw internal recording. So that is an option too.

In short. This fan works as expected and I am happy with it for what I need.

D
Dimitri Boss (Sant Boi de Llobregat, ES)
You don't need it.

First of all, over heating of canon R5(R6) is nothing to do with body temperature. It's something to do internal recording timer. To avoid that you need record externally.
