Camera Cage for RED V-RAPTOR Advanced Kit
Camera Cage for RED V-RAPTOR Advanced Kit
Camera Cage for RED V-RAPTOR Advanced Kit
Camera Cage for RED V-RAPTOR Advanced Kit
Camera Cage for RED V-RAPTOR Advanced Kit
Camera Cage for RED V-RAPTOR Advanced Kit
Camera Cage for RED V-RAPTOR Advanced Kit

Camera Cage for RED V-RAPTOR Advanced Kit

Free shipping on US orders over $299 and on EU, Asia, Canada, and Mexico orders over $399 (11/24-11/30 only)
(Offer excludes AK/HI. Some items are excluded due to weight)

$1,199.00

SKU: N/A Category:
UPC


Tilta Camera Rig for RED V-RAPTOR©
Full Camera Cage for RED V-RAPTOR
Full Camera Cage for RED V-RAPTOR
Full Camera Cage for RED V-RAPTOR
Full Camera Cage for RED V-RAPTOR
Full Camera Cage for RED V-RAPTOR
Full Camera Cage for RED V-RAPTOR

Features

Full Camera Cage for RED V-RAPTOR

LIGHTWEIGHT AND COMPACT

Various configuration possibilities

Full Camera Cage for RED V-RAPTOR

ERGONOMIC DESIGN FOR CAMERA OPERATING

Black walnut wooden side handle with quick adjustable design.

Full Camera Cage for RED V-RAPTOR

COMPATIBILITY

The front top plate is interchangable with the RED monitor interface module.

Full Camera Cage for RED V-RAPTOR

ADVANCED ANGLED TOP HANDLE EXTENSION

The transformed handle has reserved space for battery access. Provides optimal precision while operating.

Full Camera Cage for RED V-RAPTOR

TOP HANDLE 15MM ROD EXTENSION

The top handle comes with built-in 15mm rod holder in the front and the side. Allows you to install a 15mm rod to work with the original monitor mounting adapter.

Full Camera Cage for RED V-RAPTOR

NEW WOODEN SIDE HANDLE

Custom side handles made from black walnut. Ergonomic and fully adjustable design to fit your operating needs. Easy installation via the NATO rail on the side arms. Quick angle adjustment via the release button.

Full Camera Cage for RED V-RAPTOR

MULTIPLE POWER OUTPUT PORTS

14.8V 2-PIN LEMO port ×2; 14.8V P-tap port ×1; USB-C port ×1; Contact points power output (Provides power for the I/O module); Aux power output 7.5A total (MAX) ; DC output (11-17.5V)

Full Camera Cage for RED V-RAPTOR

I/O MODULE

Genlock port; CTRL (Purchase Tilta Indie 7 control cable to control camera settings.); Timecode port; R/S (14.8V) (This port can power the lens control motor.) ; Side 2-pin DC input
(When the I/O module is installed to a different part of the camera cage, it can be powered through the 2-pin LEMO port.)

Full Camera Cage for RED V-RAPTOR

BOTTOM MOUNTING PLATE

Mounts onto the side of the bottom plate on the full camera cage. Supports mounting of accessories such as an articulating arm, I/O module, wireless video transmitter, camera index patches, etc.* The mounting of the bottom mounting plate might affect access to the side of the camera. Please purchase accordingly.

Full Camera Cage for RED V-RAPTOR

LEFT AND RIGHT SIDE SINGLE ROD HOLDER

The 15mm single rod holder can be installed to the front top plate and the side arm of the full camera cage. Allows you to mount various accessories such as a wireless lens control motor.

Description

  • [PROTECTIVE ARMOR] for RED V-RAPTOR Minimizes Wear and Supports Accessories
  • [MOUNTING POINTS] include NATO Rail, ARRI Compatible Rosette, Cold Shoe, 1/4"-20 and 3/8"-16 Threads with Locating Pins
  • [TOP HANDLE] Offers Secure Option for Handling, Operating, and Mounting Accessories
  • [15MM ROD SUPPORT] Attach 15mm Rods to your System via LWS Baseplate or Side Rod Holders
  • [EXPANDED FUNCTIONALITY] via Additional Ports Offers Flexibility for Run Stop and Timecode

White Color is Limited Edition, only available until 2/20

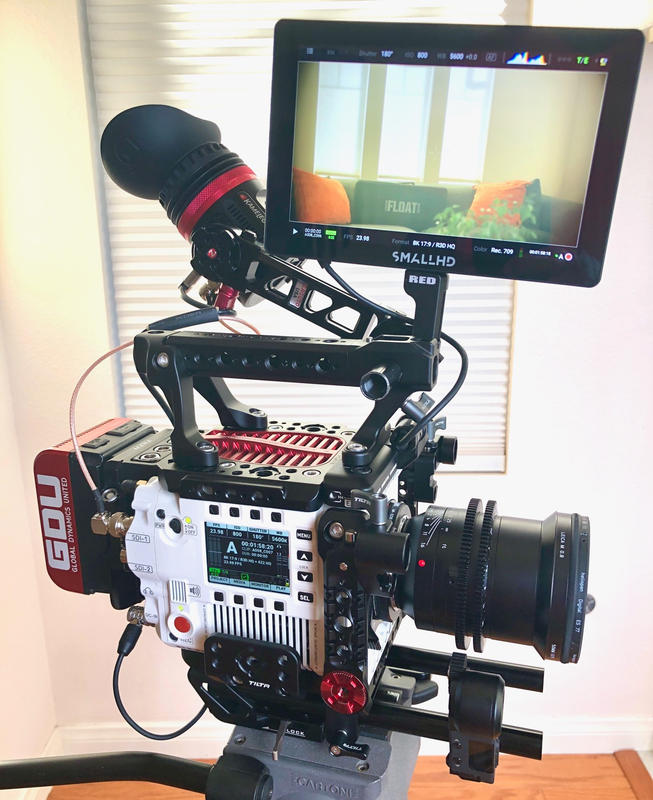

Arm your camera with the Advanced Kit for RED V-RAPTOR.

The Full Camera Cage provides protective armor for the RED V-Raptor and greatly expands your options for mounting accessories.

The cage features both ¼”-20 and 3/8”-16 threads, integrated NATO Rails for Side Handles and two Arri compatible rosettes.

The included 15mm LWS Baseplate and two 15mm Rods allow you to utilize rod based accessories such as matte boxes and follow focus systems.

Under the Baseplate you’ll find a Tilta Standard Dovetail Receiver which can be adapted to support Arri Standard Dovetails via our optional Tilta Standard to Arri Standard Multi-Functional Baseplate.

The Top Plate and Rear Top Plate offer expanded options for mounting accessories without interfering with the camera’s ventilation.

The Top Plates include 1/4″-20 and 3/8”-16 mounting points, both with and without locating pins and a single Cold Shoe Receiver.

The Rear Top Plate also includes exhaust vents engineered to mimic the V-Raptor’s integrated ventilation system in order to provide maximum cooling capability.

The Top Handle attaches to both the Top Plate and Front Top Plate which creates a secure point of contact for handling and operating your camera while also providing additional mounting points for accessories.

This Top Handle features both 1/4”-20 and 3/8”-16 mounting points with locating pins as well as one cold shoe receiver.

This Top Handle can also be broken down into a more compact configuration that only requires the Front Top Plate to mount in order to better accommodate lightweight camera builds.

The Top Handle’s newly designed 15mm rod mount allows you to mount a single 15mm rod either parallel or perpendicular to the Top Handle, allowing for more flexibility when mounting electronic viewfinders or external monitors.

The included Bottom Mounting Plate attaches near the bottom of the Camera Cage, offers additional 1/4”-20 mounting points with locating pins, and serves as an alternative location to mount the Advanced I/O Module.

The Right and Left Side Single Rod Holders mount along the side of the Full Camera Cage which provide a lightweight alternative to the baseplate.

The included Battery Plate adapts the RED V-RAPTOR’s Micro V-Mount Battery Plate to either a Gold Mount or Full Sized V-Mount Battery Plate, as well as provides a convenient slot to power and mount the included Advanced I/O Module.

The V-Mount option features an adjustable plate that allows you to fine tune the height of your battery to better accommodate different sized batteries which helps keep your build balanced and clean.

This Advanced I/O Module utilizes an integrated V-RAPTOR EXT Cable that expands communication with the camera body and offers increased functionality for Run Stop and Timecode via additional ports.

This Module can be mounted in a few different locations on the V-Raptor’s Camera Cage including the Top Handle, Top Plate, Bottom Mounting Plate or the integrated slot on the Battery Plate which can provide power and support the module.

When mounting the module in different locations other than the Battery Plate, the module can be powered via a 2 Pin Lemo input.

The Battery Plate and I/O Module include the following ports:

(1) 14.8V 2-Pin LEMO Input/Output
(1) 3 Pin Fischer R/S Port
(1) Timecode Port
(1) Red CTRL Port
(1) Genlock Port

(2) 14.8V 2-Pin LEMO Port
(1) 14.8V P-Tap Port
(1) USB-C Port

ESR-T08-B-AB
1.Full Camera Cage for RED V-RAPTOR(ESR-T08-FCC)*1
2.Front Top Plate for RED V-RAPTOR(ESR-T08-FTP)*1
3.Rear Top Plate for RED V-RAPTOR(ESR-T08-RTP)*1
4.Bottom Mounting Plate for RED V-RAPTOR(ESR-T08-BMP)*1
5.Aluminum Rod 15*200mm Black(Pair)(R15-200-B-P)*1pair
6.15mm LWS Baseplate for RED V-RAPTOR(ESR-T08-BSP)*1
7.Left Side Single Rod Holder for RED V-RAPTOR(ESR-T08-LRH)*1
8.Right Side Single Rod Holder for RED V-RAPTOR(ESR-T08-RRH)*1
9.Top Handle for RED V-RAPTOR(ESR-T08-TH)*1
10.Advanced I/O Module for RED V-RAPTOR(ESR-T08-IOM)*1
11.Battery Plate for RED V-RAPTOR – Gold Mount(ESR-T08-BP-AB)*1

ESR-T08-B-V
1.Full Camera Cage for RED V-RAPTOR(ESR-T08-FCC)*1
2.Front Top Plate for RED V-RAPTOR(ESR-T08-FTP)*1
3.Rear Top Plate for RED V-RAPTOR(ESR-T08-RTP)*1
4.Bottom Mounting Plate for RED V-RAPTOR(ESR-T08-BMP)*1
5.Aluminum Rod 15*200mm Black(Pair)(R15-200-B-P)*1pair
6.15mm LWS Baseplate for RED V-RAPTOR(ESR-T08-BSP)*1
7.Left Side Single Rod Holder for RED V-RAPTOR(ESR-T08-LRH)*1
8.Right Side Single Rod Holder for RED V-RAPTOR(ESR-T08-RRH)*1
9.Top Handle for RED V-RAPTOR(ESR-T08-TH)*1
10.Advanced I/O Module for RED V-RAPTOR(ESR-T08-IOM)*1
11.Battery Plate for RED V-RAPTOR – V Mount(ESR-T08-BP-V)*1

Dimensions: 16.5 x 9.5 x 6 inches

Weight: 6 lbs

Materials: Aluminum Alloy, Stainless Steel

Color: Black

Customer Reviews
4.8 Based on 4 Reviews
5 ★
75%
3
4 ★
25%
1
3 ★
0%
0
2 ★
0%
0
1 ★
0%
0
Customer Photos
100reviewers would recommend this product Write a Review Ask a Question

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
  • cage
  • gimbal
  • V-Raptor
  • feature film
  • regards
  • cooling fan
  • components
  • negatives
  • connectors design
  • shoots
DW
05 May 2022
donald w.
US US
I recommend this product

worth it, not perfect

We use the cager on all our shoots, the connectors design etc is super helpful etc. The only negatives, 1. depending on build out, cage makes it too heavy for our gimbal…though works fine without all the components 2. our camera heats up significantly faster using the cage—our cage arrived two weeks into a feature film and before and after in regards to cooling fan on camera was noticeable. AND I’d absolutely by it again.

  • Product Quality Needs WorkGoodExcellent
  • Price / Value ExpensiveOKGreat
  • What kind of content do you create? feature films. series
  • What Camera System do you use this with? RED
DW
30 March 2022
donald w.
Houston, Texas, United States

straight into feature film

We shot the first ten days of our feature without the cage...having it for accessories is great. top handle, along with battery extension on the back, connectivity---would buy it again.... ONLY negative...the top plate. though well vented, we found that the camera and the top plate heats up MORE with the tilta cage on... with the FAN kicking on more than prior to using the cage...it is well ventilated...and it's the one thing I noticed in regards to fan sound (as the director) and that the DP mentioned to me on multiple occasions...AND i'd absolutely buy it again.

KM
03 July 2022
Keith M.
US US
I recommend this product

Camera Cage for RED V-RAPTOR Advanced Kit

This is the perfect cage for the V-Raptor. Very sturdy and well built! I don't own a Tilta product that I'm not happy with.

  • Product Quality Needs WorkGoodExcellent
  • Price / Value ExpensiveOKGreat
  • What kind of content do you create? All
  • What Camera System do you use this with? RED
Tilta Camera Cage for RED V-RAPTOR Advanced Kit Review
A
19 June 2022
Anonymous
US US
I recommend this product

Excellent product

Fantastic! It’s got everything and more

  • Product Quality Needs WorkGoodExcellent
  • Price / Value ExpensiveOKGreat
  • What kind of content do you create? Documentaries
  • What Camera System do you use this with? REDSigma
