Camera Cage for Alexa Mini LF/ Mini
Camera Cage for Alexa Mini LF/ Mini
Camera Cage for Alexa Mini LF/ Mini
Camera Cage for Alexa Mini LF/ Mini

Camera Cage for Alexa Mini LF/ Mini

$2,499.00

Clear
SKU: ESR-T07-PRT Category:
UPC


Description

exclusive trade in offer

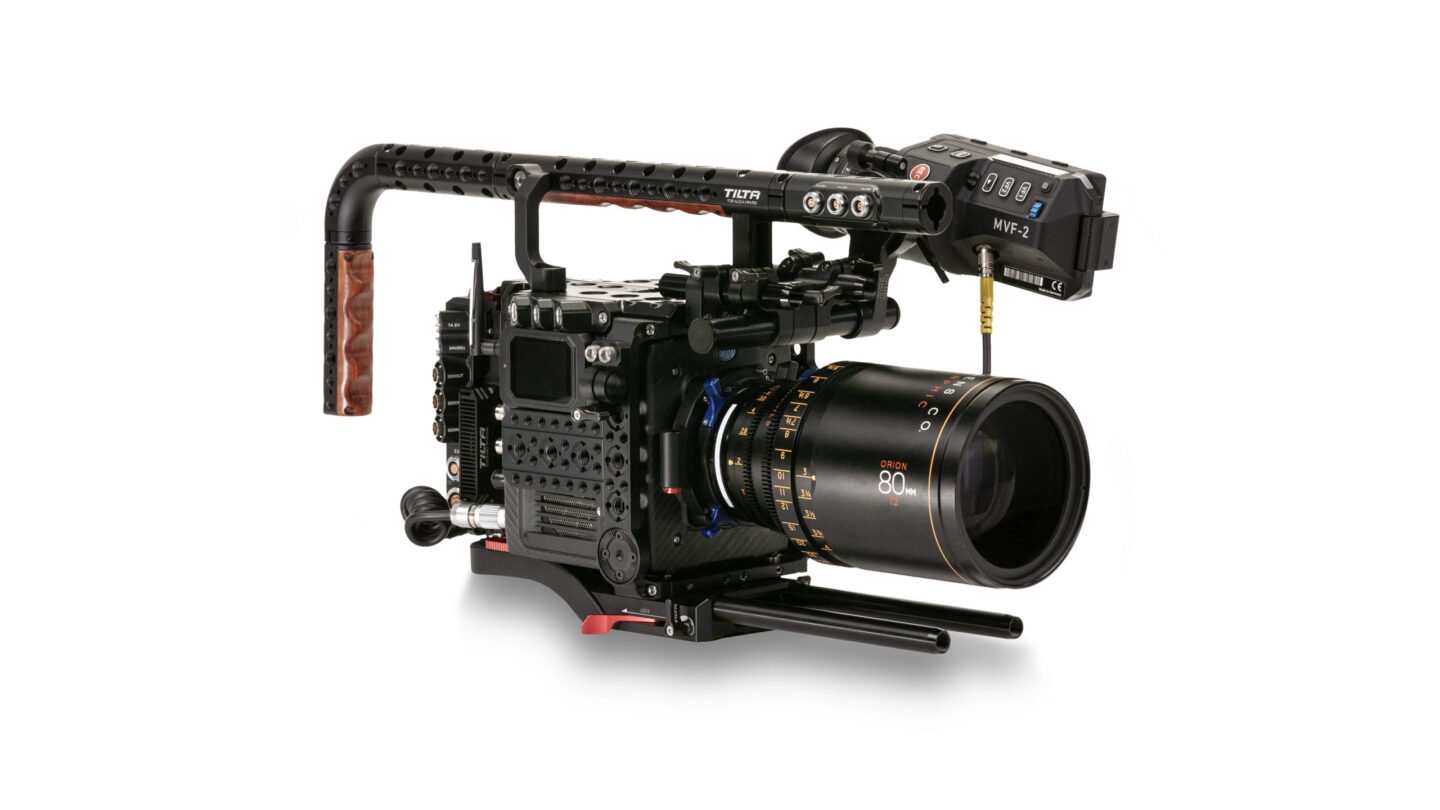

Arm your camera with this Tilta camera cage specifically designed for the Arri Alexa Mini LF and Alexa Mini. It provides a high quality aluminum, CNC-milled protective armor for your camera that has several ¼”-20 and ⅜”-16 mounting points for attaching accessories.

The Tilta Standard Battery Plate for Arri Alexa Mini LF/Mini Cage (available in either gold mount or V-mount) integrates with the camera body to provide several power and video in and outputs. Pins on the top NATO rail of the plate directly communicate with the top plate and top handle when attached which transfers power output functionality to them. The Top Plate Power Connection Module offers power distribution off the top plate while the Top Handle Power Connection Module offers power distribution off the top handle. These allow you to power your accessories from virtually anywhere on the cage.

The battery plate is attached to a sliding bridge mount so you can move it away from the back of the camera body to access the various buttons and ports and then slide it back right up to the camera body for a compact setup while operating.

An EVF holder can be mounted off the top plate which allows for 360 degree rotation so that you can customize how you want to view your Alexa Mini LF/Mini EVF while operating.

Top handle extensions are included to allow you to extend the length of the top handle over the back of the setup to allow for precise operating.

Left and right side arms help to fully stabilize the cage and provide protection as well as a variety of mounting points to all sides of the cage. These side arms also include Arri Standard Rosette connections to allow you to easily connect handles for a compact handheld operating setup.

On the bottom of the cage is a 15mm LWS baseplate that allows you to attach various accessories via 15mm rods. The plate can mount to a Tilta Standard Lightweight Dovetail Plate to allow you to easily slide on and off of an operating setup.

**An additional baseplate can be purchased to adapt the Tilta standard baseplate to an Arri standard baseplate to allow you to mount your camera rig onto an Arri standard-sized dovetail.

  1. Top Handle for Arri Alexa Mini/Mini LF Camera Cage
    • 15mm LWS Top Rod Adapter for Arri Alexa Mini/Mini LF Camera Cage
    • 19mm EVF Bracket Mount for Arri Alexa Mini/Mini LF Camera Cage
  2. Top Handle Power Connection Module for Arri Alexa Mini/Mini LF Camera Cage
  3. EVF Support for Arri Alexa Mini/Mini LF Camera Cage
    • EVF Holder for Arri Standard Interface
    • 19mm EVF Holder Support Rod
    • 15mm LWS to 19mm EVF Holder Support Rod Adapter
  4. Top Plate for Arri Alexa Mini/Mini LF Camera Cage
  5. Top Handle Support Bracket for Arri Alexa Mini/Mini LF Camera Cage
  6. Sliding Battery Plate Support Bracket for Arri Alexa Mini/Mini LF Camera Cage
  7. Battery Plate for Arri Alexa Mini/Mini LF Camera Cage (Available in V-Mount or Gold Mount)
  8. Top Plate Power Output/Voltage Readout Screen Module for Arri Alexa Mini/Mini LF Camera Cage
    • Top Plate Power Connection Module
    • Power Supply Voltage Readout Screen
  9. Left Side Arm for Arri Alexa Mini/Mini LF Camera Cage
  10. Right Side Mounting Bracket for Arri Alexa Mini/Mini LF Camera Cage
    • Right Side Arm for Arri Alexa Mini/Mini LF Camera Cage
    • Side Accessory Mounting Plate
    • 15mm Single Rod Holder
  11. Base Connection Plate for Arri Alexa Mini/Mini LF Camera Cage
  12. 15mm LWS Baseplate for Arri Alexa Mini/Mini LF
  13. (2) 15mm x 100mm Rods
  14. (3) Allen Keys
  15. (2) 15mm x 200mm Rods
  16. 7-Pin EXT to 7-Pin EXT Cable for Arri Alexa Mini/Mini LF
  17. Top Handle Extension Grip for Arri Alexa Mini/Mini LF

Color: Black

Materials: Aluminum-alloy, stainless steel

Rod System: 15mm LWS

Power/Port Breakdown:

V-Mount Battery Plate Version (15 Amps max. when powered with 14.8V; 12 Amps max. when powered with 24V)

    • (2) 14.8V 3-Pin Fischer outputs with RS (3 Amps max. each)
    • (1) 24V 3-Pin Fischer output with RS (3 Amps max.)
    • (3) 14.8V 2-Pin 0B Lemo outputs (3 Amps max. each)
    • (1) 14.8V P-tap output (3 Amps max.)
    • (1) 12-30V 6-Pin 2B Lemo Power input
    • (1) 7-Pin Lemo EXT input
    • (1) 7-Pin Lemo EXT output
    • (1) 8-Pin 2B Lemo Camera Power Cable
    • (1) HD-SDI input
    • (2) HD-SDI outputs

Gold Mount Battery Plate Version (15 amps max. when powered with 14.8V; 12 Amps max. when powered with 24V)

    • (1) 14.8V 3-Pin Fischer output with RS (3 Amps max.)
    • (1) 24V 3-Pin Fischer output with RS (3 Amps max.)
    • (2) 14.8V 2-Pin 0B Lemo outputs (3 Amps max. each)
    • (1) 12-30V 6-Pin 2B Lemo Power input
    • (1) 7-Pin Lemo EXT input
    • (1) 7-Pin Lemo EXT output
    • (1) 8-Pin 2B Lemo Camera Power Cable
    • (1) HD-SDI input
    • (2) HD-SDI outputs

Top Handle Power Connection Module for Arri Alexa Mini/Mini LF Camera Cage (6 Amps max.)

    • (2) 14.8V 3-Pin Fischer outputs (2 Amps max. each)
    • (1) 14.8V 2-Pin 0B Lemo outputs (2 Amps max.)

Top Plate Power Connection Module (6 Amps max.)

    • (2) 14.8V 3-Pin Fischer outputs (2 Amps max. each)
    • (1) 14.8V 2-Pin 0B Lemo outputs (2 Amps max.)
