Battery Plate to RS 2 Power Pass-through Plate Kit
Battery Plate to RS 2 Power Pass-through Plate Kit
Battery Plate to RS 2 Power Pass-through Plate Kit
Battery Plate to RS 2 Power Pass-through Plate Kit
Battery Plate to RS 2 Power Pass-through Plate Kit
Battery Plate to RS 2 Power Pass-through Plate Kit
Battery Plate to RS 2 Power Pass-through Plate Kit
Battery Plate to RS 2 Power Pass-through Plate Kit

Battery Plate to RS 2 Power Pass-through Plate Kit

Free shipping on US orders over $299 and on EU, Asia, Canada, and Mexico orders over $399 (11/24-11/30 only)
(Offer excludes AK/HI. Some items are excluded due to weight)

$119.00

SKU: N/A Category:
UPC


Battery Plate to RS 2 Power Pass-through Plate Kit
external power supply

External Power Supply

quick assembly

Quick Assembly

High Compatibility

High Compatibility

Secure & Reliable

Secure & Reliable

Tilta Battery Plate to DJI RS 2 Power Pass-through Plate Kit

Features

Battery Plate to RS 2 Power Pass-through Plate Kit

Compact & Flexible

Compact, flexible, and space efficient use of the DJI Ronin gimbal for power expansion.

Battery Plate to RS 2 Power Pass-through Plate Kit

Modular Design

Easy balancing and rotation. Both V-mount and gold mount battery plates are available. The battery setup provides an optimized gravity center for operating.

Battery Plate to RS 2 Power Pass-through Plate Kit

High Compatibility

Secure mounting to the Hydra Alien Car Mount System. Compatible with Hydra alien car mount system and Tilta float handheld gimbal support system.

cable

Various Setup Options

Support various shooting needs. Stable power output to support the gimbal and the accessories. Longer continuous shooting time. (Comes with a 400mm P-tap to 2-pin LEMO power cable.)

14.8v

Multiple Output & Input Available

Provides a minimum 12V power supply for your camera setup. Both input and output are available. When not connected to the battery, input through one port, and the other three ports can function as outputs.

Battery Plate to RS 2 Power Pass-through Plate Kit

Secure & Reliable

When connected to the battery, all for ports function as output.

Battery Plate to RS 2 Power Pass-through Plate Kit
secure mounting

Secure Mounting

More productivity and stability.

Battery Plate to RS 2 Power Pass-through Plate Kit

External Power Supply

Both V-mount and gold mount battery plates are available.

Battery Plate to RS 2 Power Pass-through Plate Kit
Battery Plate to RS 2 Power Pass-through Plate Kit

Description

  • [POWER ACCESSORIES] and Camera Systems While Using the DJI RS2, RS3**, & RS3 Pro**
  • [IMPROVED POSITIONING] for Batteries Leads to Better Gimbal Performance
  • [HIGH CAPACITY] Power Output from Gold or V-Mount Batteries
  • [POWER OUTPUTS] Include 14.8V P-Tap and 2 Pin Lemo Ports
  • [ECOSYSTEM COMPATIBLE] Pairs Perfectly with Hydra Alien and Float System

NOTE: This is partially compatible with the RS3 and RS3 Pro, however, range of motion will be limited when tilting down.

The RS3 and RS3 Pro version can be found HERE.

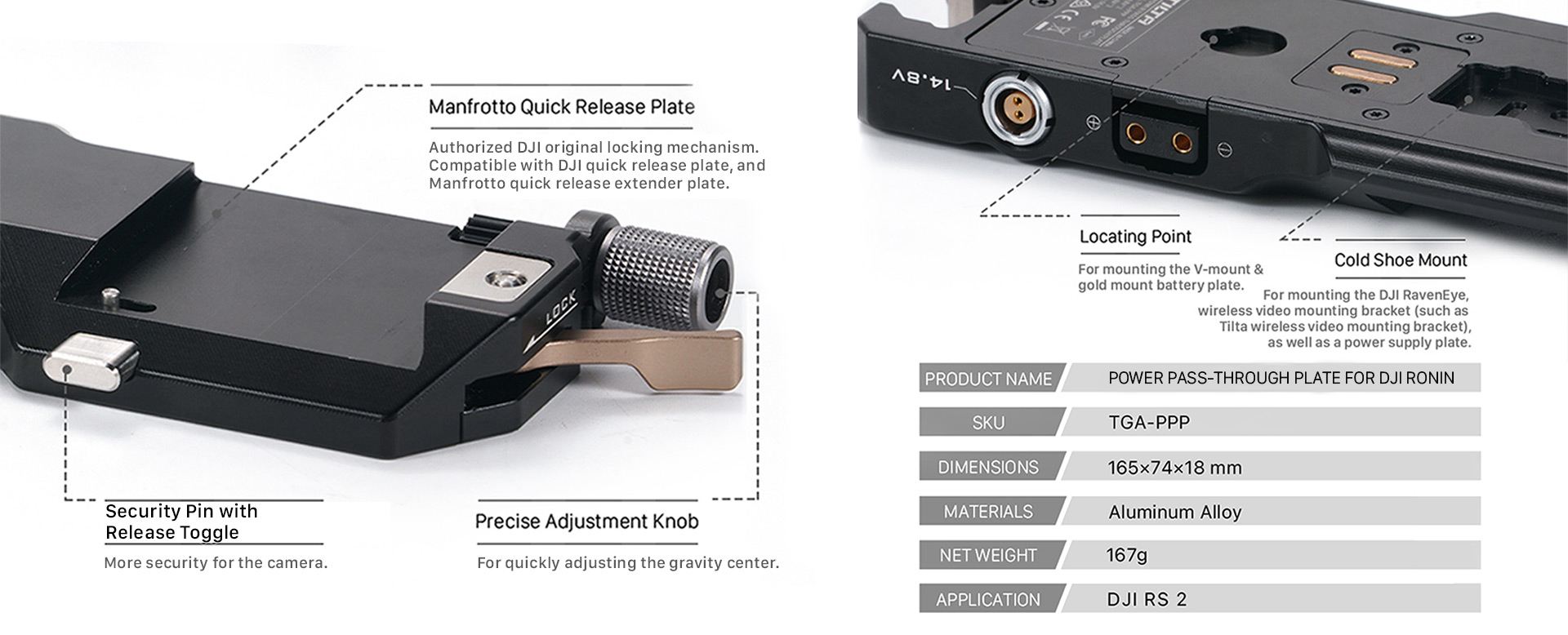

This Battery Plate Power Pass-through Kit replaces the original sled of the DJI RS2, RS3** & RS3 Pro** and offers increased power options for your camera and accessories.

Simply remove the original Ronin Plate by unlocking the height adjustment lever and sliding the plate completely off. The Power Pass-through Plate then slides on and locks in the exact same fashion.

The Power Pass-through Plate features multiple 2 Pin Lemo and P-Tap power output ports making this plate the perfect solution for powering your camera or accessories like wireless follow focus motors while using your gimbal.

The 2 Pin Lemo port can function as a power input, allowing you to power the plate via an external source with an optional 2 Pin to P-Tap power cable.

The Gold or V-Mount Battery Plate allows you to mount batteries underneath the plate which gives you the ability to power your camera and accessories via higher capacity batteries without adding extra length to your camera setup.

This makes your camera system easier to balance on the gimbal and leads to better gimbal performance overall via a more optimized center of gravity.

The ability to mount an additional battery makes this a perfect fit for the Hydra Alien when using lighter camera systems that need additional weight to get the best performance out of the shock absorbing arm.

This is also a perfect solution for adding power outputs to the Float System.

This Kit includes both the Power Pass-through Plate and a Gold or V-Mount Battery Plate with the option of swapping the battery plate for a 2 Pin to P-Tap power cable.

Gold Mount

1:Power Pass-through Plate for DJI Ronin(TGA-PPP)*1
2:Battery Plate for Power Pass-through Plate for DJI Ronin – Gold Mount(TGA-PPP-AB)*1

V-Mount

1:Power Pass-through Plate for DJI Ronin(TGA-PPP)*1
2:Battery Plate for Power Pass-through Plate for DJI Ronin – V Mount(TGA-PPP-V)*1

None

1:Power Pass-through Plate for DJI Ronin
2:P-TAP to 2-Pin Lemo Power Cable (400mm)(TCB-DTP-2LE-40)*1

Dimensions: 7 x 4.5 x 5 inches

Weight: 0.74 lbs

Net Weight: 0.368 inches

Materials: Aluminum alloy, stainless steel

Color: Black
